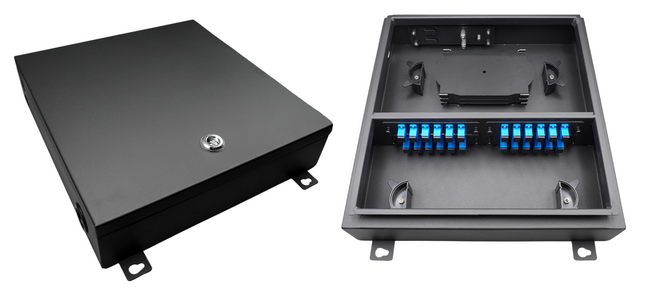

FIBER OPTIC WALL MOUNT OPTICAL DISTRIBUTION FRAME – 24 PORT SC

The FiberCore Wall Mount Optical Distribution Frame 24 Port SC is a versatile fiber distribution solution designed for medium-scale FTTx deployments. It integrates fiber splicing, termination, and cable routing into a single secure enclosure.


Supporting up to 24 SC adapters, it provides organized fiber management through a modular tray design and protected internal routing system. The durable enclosure helps protect fiber connections from environmental stress while allowing easy maintenance access.


  • Wall-mounted ODF design for medium-capacity applications
  • Supports up to 24 fiber cores
  • Compatible with SC, LC, FC, and ST adapters
  • Supports simplex and duplex adapters
  • Modular splice tray structure
  • Front lockable cover for security
  • Dust and environmental protection
  • Built-in cable clamps and strain relief
  • Organized pigtail and fiber routing
  • Suitable for wall and pole mounting
  • IP66 waterproof and dustproof design




  • Telecommunications backbone and access networks
  • CATV (Cable TV) systems
  • LAN & WAN enterprise networking
  • Data centers and server rooms
  • FTTH (Fiber to the Home) and FTTx deployment
  • Indoor optical cable distribution and management


  • Model: FC-41-WM-24
  • Application:
    • Indoor and outdoor cable-to-pigtail protection
  • Material:
    • Cold-rolled steel
    • Powder-coated anti-corrosive finish
  • Color:
    • Light gray
    • Black (customizable)
  • Protection Rating: IP66
  • Capacity: Up to 24 fiber cores
  • Adapter Compatibility:
    • SC
    • LC
    • FC
    • ST
  • Cable Diameter Support:
    • Ø8.5mm – Ø18mm
  • Cable Entry Ports:
    • 2–4 ports
  • Mounting:
    • Wall mount
    • Pole mount
  • Dimensions:
    • Height: 350mm
    • Width: 330mm
    • Depth: 80mm
  • Operating Temperature:
    • -40°C to +70°C
