CAT6A 23AWG S/FTP
OUTDOOR CABLE
Solid PE Cable
TIA/EIA 568.2-D • EN50173 • ISO/IEC 11801
CAT6A 23AWG F/UTP Outdoor Cable is a shielded high-performance outdoor copper cable designed for reliable data transmission in structured cabling systems and harsh environmental conditions. Featuring solid bare copper conductors, foil shielding, and a durable PE jacket, it provides enhanced protection against interference, stable connectivity, and high-bandwidth performance up to 500MHz for outdoor network applications.

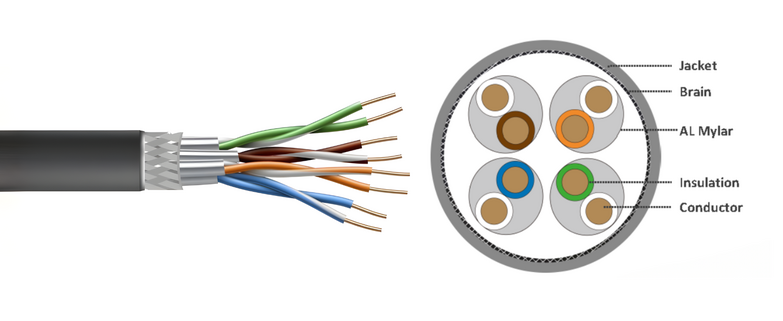

COMPONENT | SPECIFICATION |
Conductor | 23AWG Solid Bare Copper, 0.57±0.010mm |
Insulation | HDPE, OD 1.05±0.5mm, Min Thickness 0.26mm |
Drain Wire | 1/0.400±0.008, Tinned Solid Copper Conductor |
Central Element | OD 6.0mm (REF) + CROSS |
Jacket | PE, OD 7.30±0.40mm, Average Thickness 0.55±0.10mm, Black |
