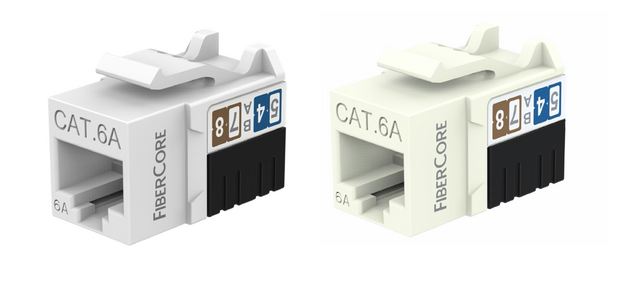

CAT6A UTP 90° Keystone Jack

110 Punch Down Type, Black / White Color with Red Color Plate

CAT6A UTP 90° Punch Down Keystone Jack is a high-density, high-performance connectivity solution designed for advanced structured cabling environments. Featuring a compact 90-degree design, premium materials, and support for 4PPoE applications, it delivers reliable high-speed network performance for data centers, commercial buildings, and professional LAN installations.


  • 90-degree slim compact structure suitable for high-density applications or edge data center installations
  • Supports 23–26AWG solid wire with T568A & T568B wiring schemes
  • Supports 4PoE applications and fits standard Decora wall plates


  • Keystone jack housing: ABS+PC, UL94V-0
  • Jack contact bracket: PBT + Glass Fiber, UL94V-0
  • Spring pin: Phosphor Bronze, 50µ" Gold Plated
  • IDC house: PC, UL94V-2, White Color
  • IDC contact: Phosphor Bronze, Tin Plated
  • IDC cap: ABS+PC UL94V-0, Black Color
  • PCB: FR4, UL94V-0


  • Life (Mating Cycles): Min. 750 cycles
  • Mating & un-mating force: Max. 20N
  • Retention strength: 7.7kg between jack and plug
  • Wire conductor range: Solid and stranded, 23–26AWG
  • Cable OD range: 5.5–9.0mm
  • IDC re-installing cycles: Min. 20 cycles
  • Operating temperature range: -10°C to 60°C
