OM3 Indoor Distribution Cable GJPFJH

GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM3 300 Aqua

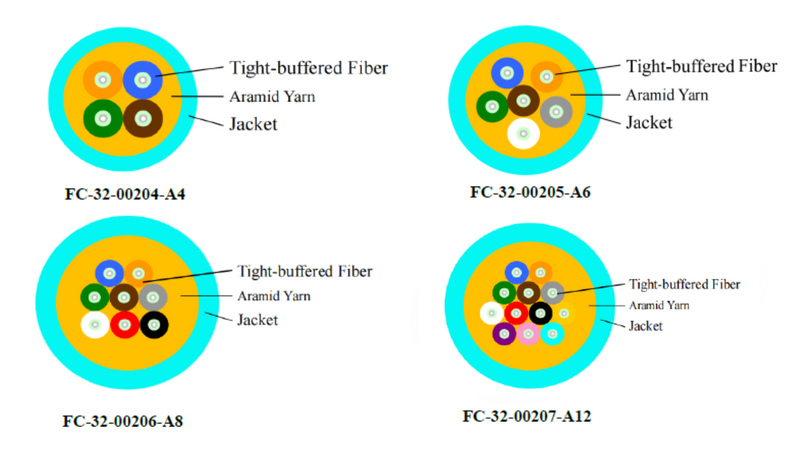

The GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM3 300 Aqua is a high-performance multimode fiber optic cable designed for reliable indoor backbone and horizontal cabling applications. Built with OM3 50/125μm G.651.1 tight-buffered fibers, durable Kevlar (Aramid Yarn) strength members, and a flame-retardant LSZH (Low Smoke Zero Halogen) jacket, it delivers stable high-speed data transmission, excellent mechanical protection, and easy installation. Available in 4, 6, 8, and 12-core configurations, it is ideal for enterprise networks, data centers, and structured cabling systems.

Features

OM3 G.651.1 multimode fiber optimized for 10 Gigabit Ethernet applications.
Tight-buffered fiber construction simplifies handling and field termination.
Kevlar (Aramid Yarn) strength members provide enhanced tensile strength.
LSZH (Low Smoke Zero Halogen) jacket improves fire safety while reducing smoke and toxic emissions.
Compact and lightweight design for easy indoor routing and installation.
Easy to strip and terminate, reducing installation time.
Stable, high-bandwidth signal transmission for high-speed networks.
Compatible with standard fiber optic connectors and termination hardware.

APPLICATIONS

Indoor backbone and horizontal cabling
Data center patching and cross-connections
Telecommunications rooms and Optical Distribution Frames (ODFs)
Campus LAN and WAN networks
FTTH, FTTB, and FTTO indoor fiber deployments
Switch, router, server, and storage interconnections
High-density fiber distribution in offices, hospitals, schools, and commercial buildings

Technical Specifications

ITEM	SPECIFICATION
Fiber Type	OM3 G.651.1 Multimode (50/125μm)
OFL Bandwidth	≥1500 MHz·km @850nm; ≥500 MHz·km @1300nm
Effective Modal Bandwidth	≥2000 MHz·km @850nm; ≥500 MHz·km @1300nm
Attenuation	≤2.3 dB/km @850nm; ≤0.6 dB/km @1300nm
