OM4 Indoor Distribution Cable GJPFJH

GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM4 550 Magenta

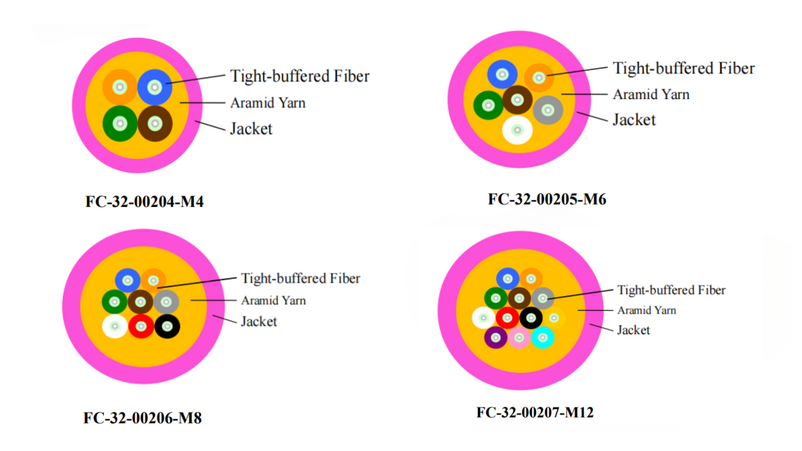

The GJPFJH Indoor Tight Buffer Fiber Distribution Cable MM OM4 550 Magenta is a premium multimode fiber optic cable engineered for ultra-high-speed indoor network applications. Featuring OM4 50/125μm G.651.1 tight-buffered fibers, Kevlar strength members, and a flame-retardant LSZH jacket, it delivers superior bandwidth and extended transmission distances for data centers and enterprise networks. Available in 4, 6, 8, and 12-core configurations, it provides exceptional performance for high-density fiber installations.

Features

OM4 G.651.1 multimode fiber optimized for high-bandwidth applications.
Supports extended 10G Ethernet transmission up to 550 meters.
Tight-buffered fiber design enables fast installation and termination.
Kevlar (Aramid Yarn) reinforcement provides excellent mechanical protection.
LSZH jacket enhances fire safety and minimizes smoke emissions.
Lightweight and flexible for easy indoor routing.
Reliable signal transmission with low attenuation.
Compatible with standard fiber connectors and termination systems.

APPLICATIONS

Indoor backbone and horizontal cabling
High-speed data centers
Telecommunications equipment rooms
Enterprise LAN and WAN deployments
FTTH, FTTB, and FTTO indoor networks
Server, switch, router, and storage connectivity
High-density structured cabling systems

Technical Specifications

ITEM	SPECIFICATION
Fiber Type	OM4 G.651.1 Multimode (50/125μm)
OFL Bandwidth	≥3500 MHz·km @850nm
Effective Modal Bandwidth	≥4700 MHz·km @850nm
Attenuation	≤2.3 dB/km @850nm; ≤0.6 dB/km @1300nm
